A FRESH APPROACH TO HELIOSTAT
STRUCTURALT OPTIMIZATION

ABOUT HM SOLAR


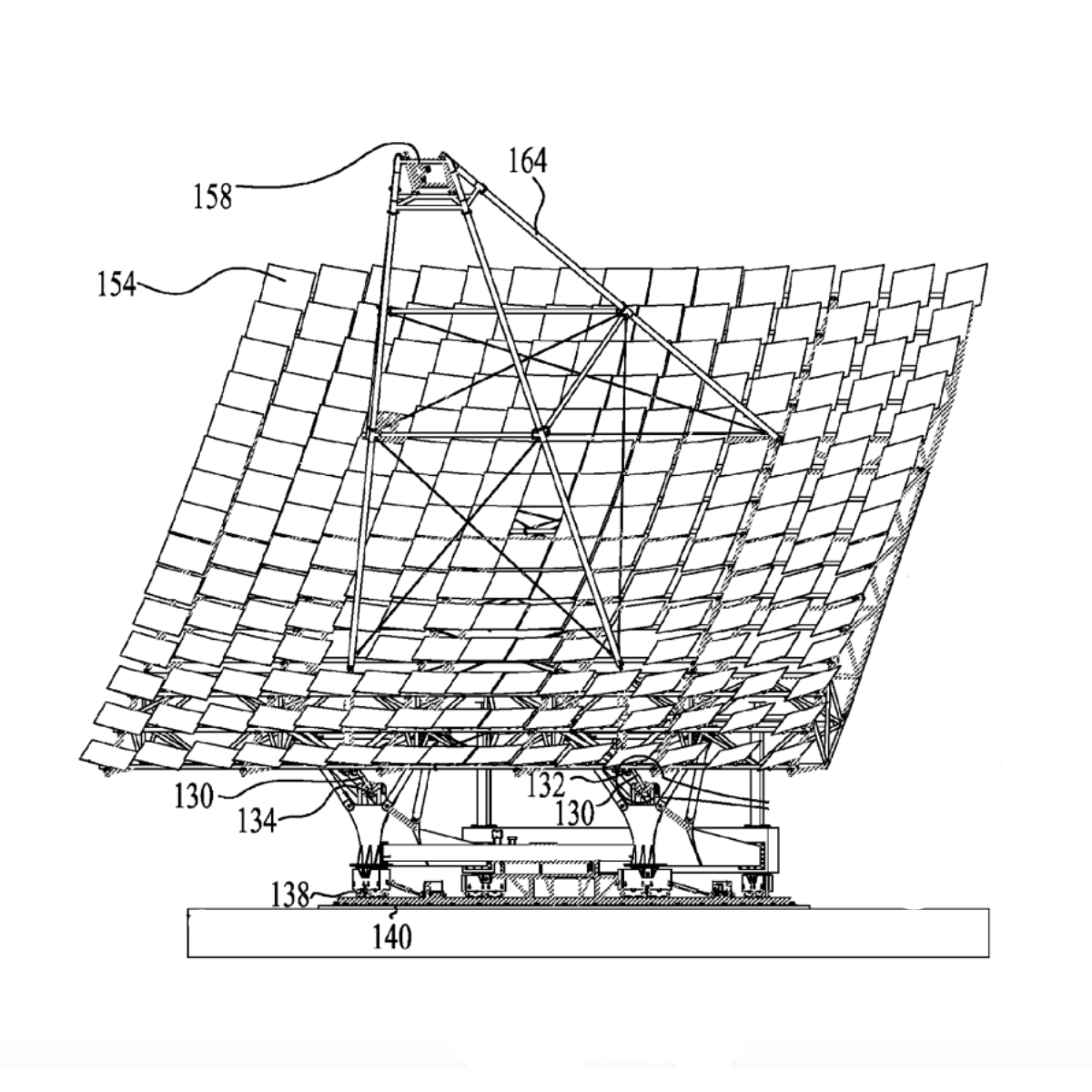

The app presents a novel way for optimizing heliostats with arbitrary design and geometry. It is based on linear optimization and implemented as a custom-built FEA library. Stress and lateral buckling validations are performed according to Eurocode. Wind load assumptions are taken from the wind tunnel studies of Peterka and Derickson and applied as non uniform load distributions on the heliostat surface. Additional national standards can be considered by setting appropriate safety factors for wind and dead load.

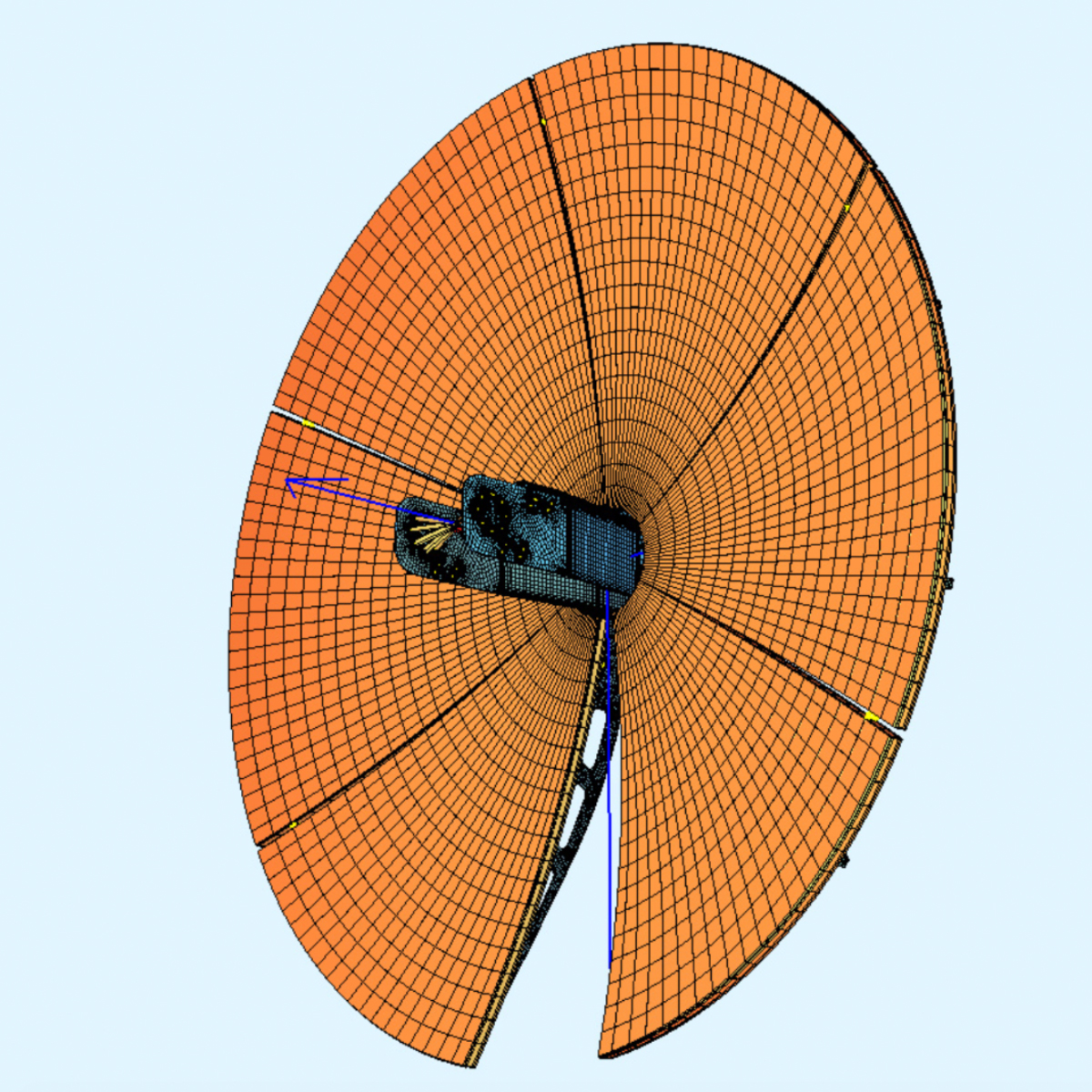

The results of the performed finite element analysis can be used to determine the weight of a heliostat or solar tracker for a given geometrical and environmental boundary condition.

The app can assist the work of researchers, design engineers and renewable energy investors or can be used as a convenient and quick-reference tool.

APP KEY FEATURES


Safety factors

Dead load
Wind load

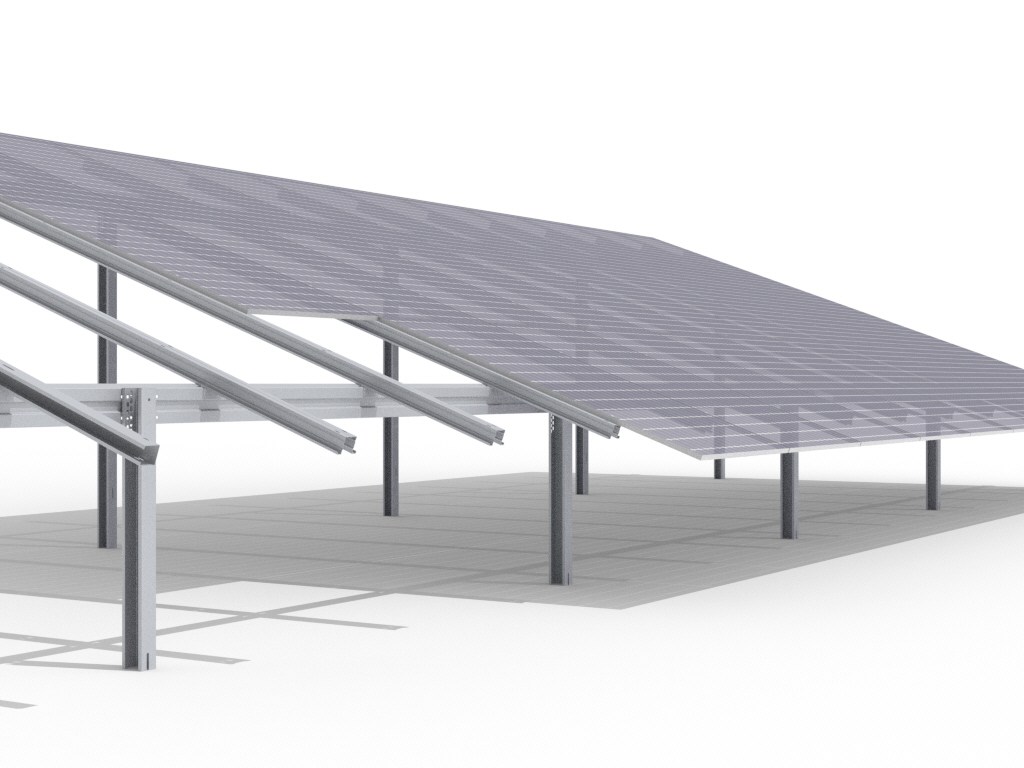

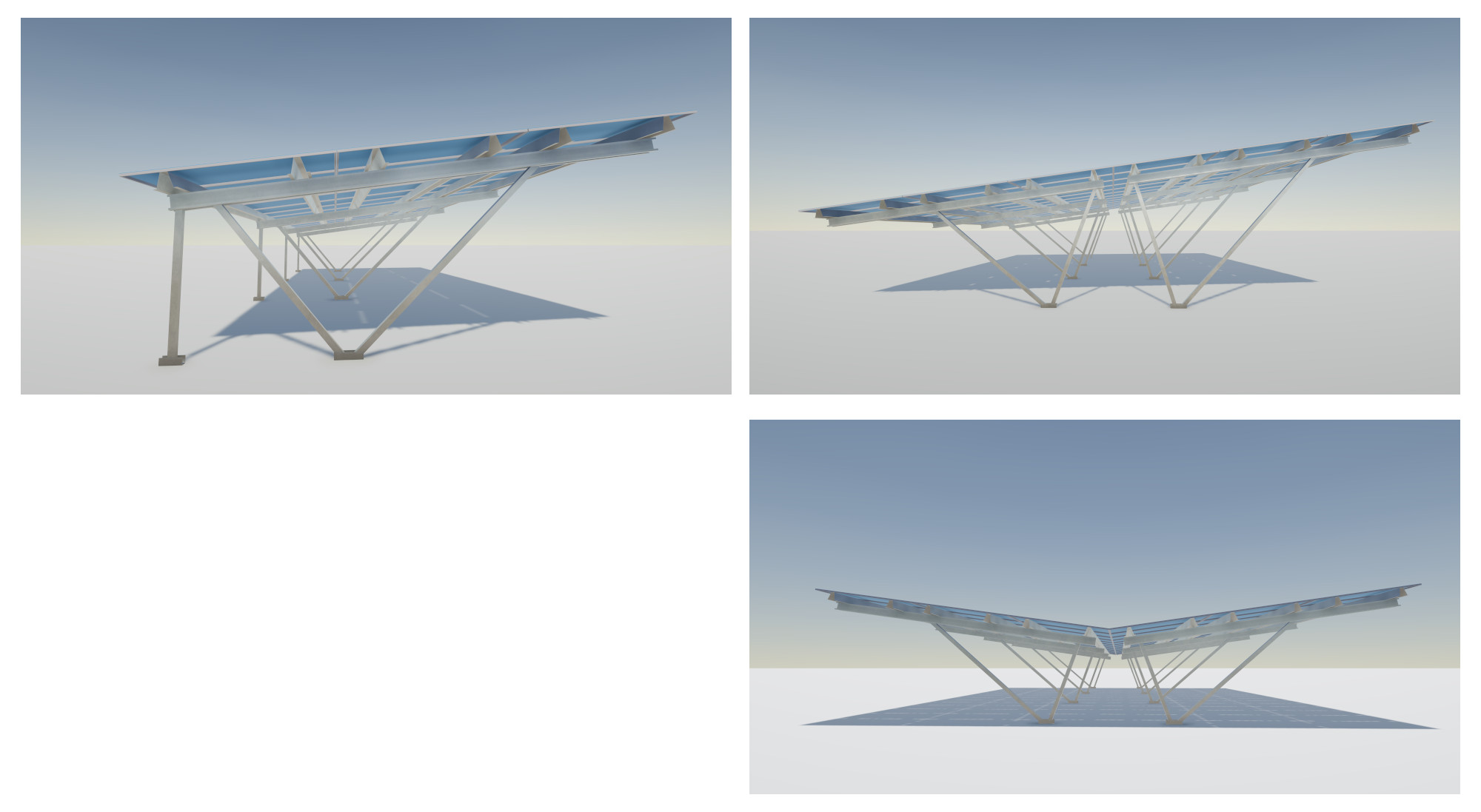

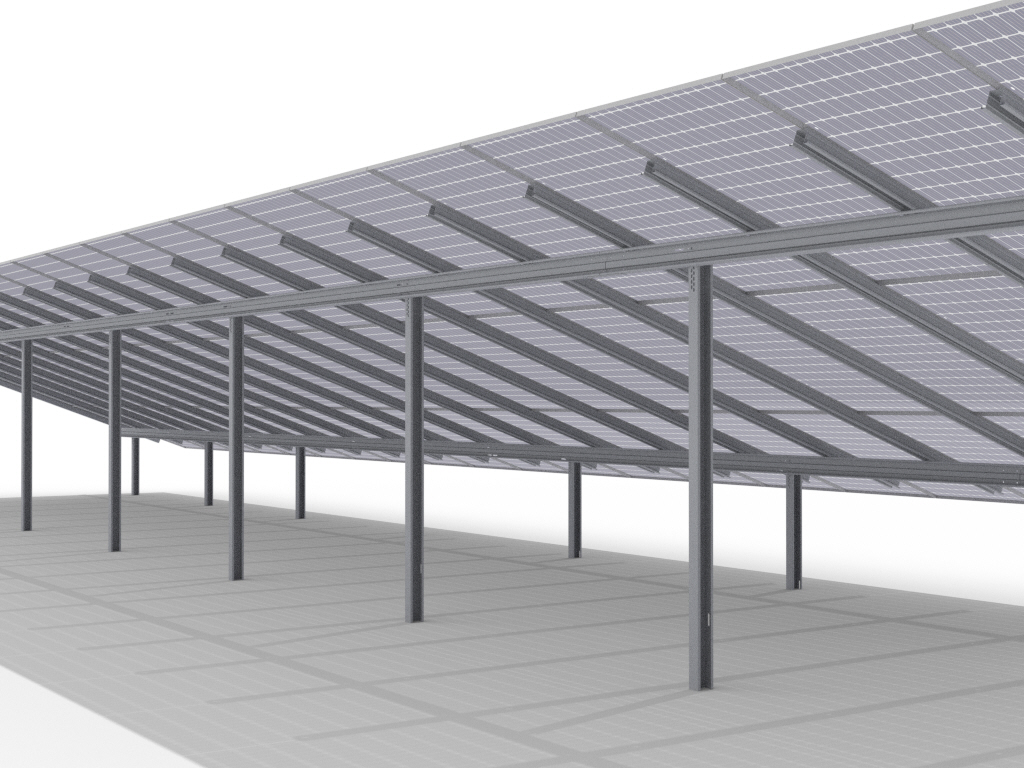

Structure parameters

Width
Height

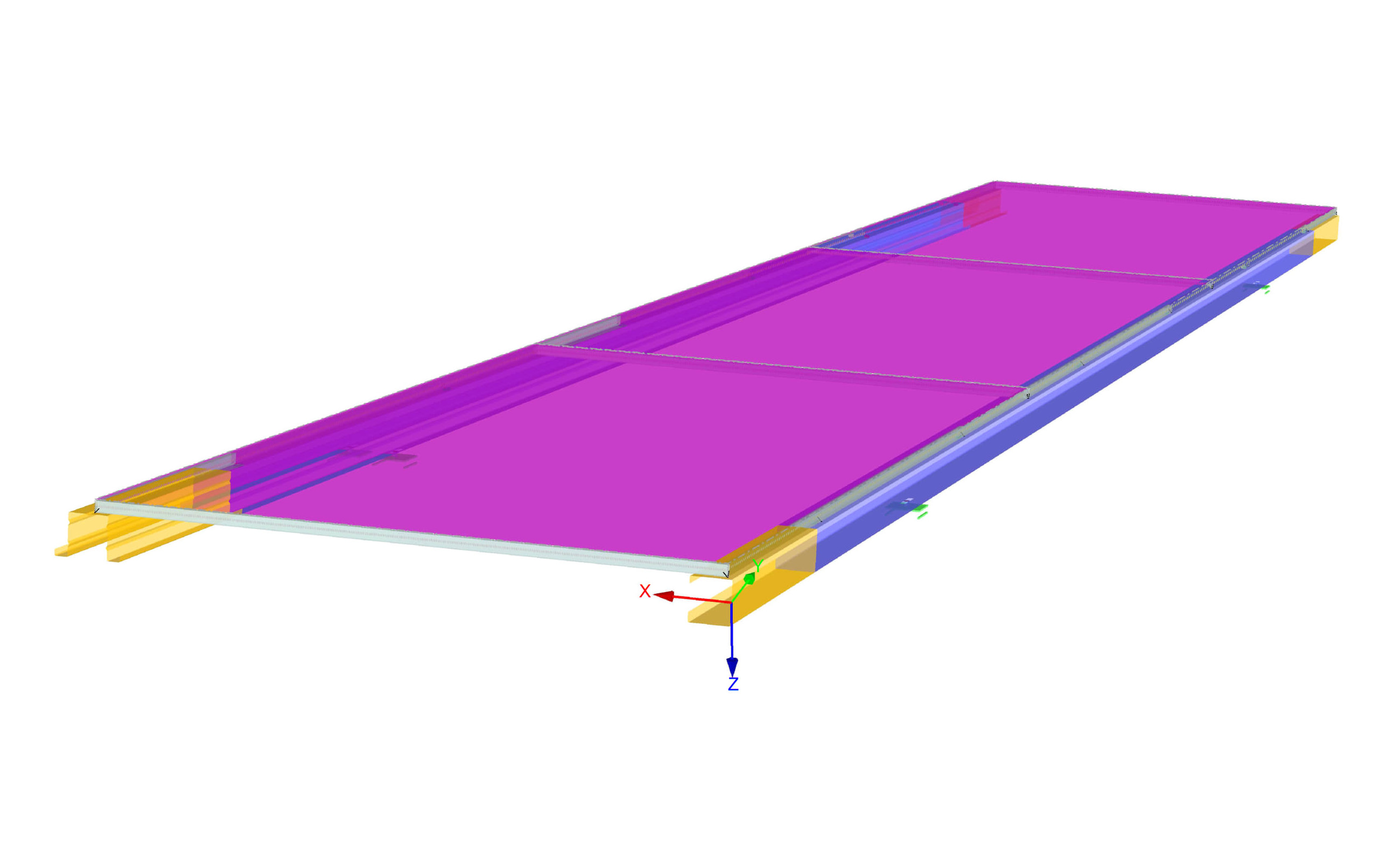

Module properties

Self weight of
PV panels or glass facets

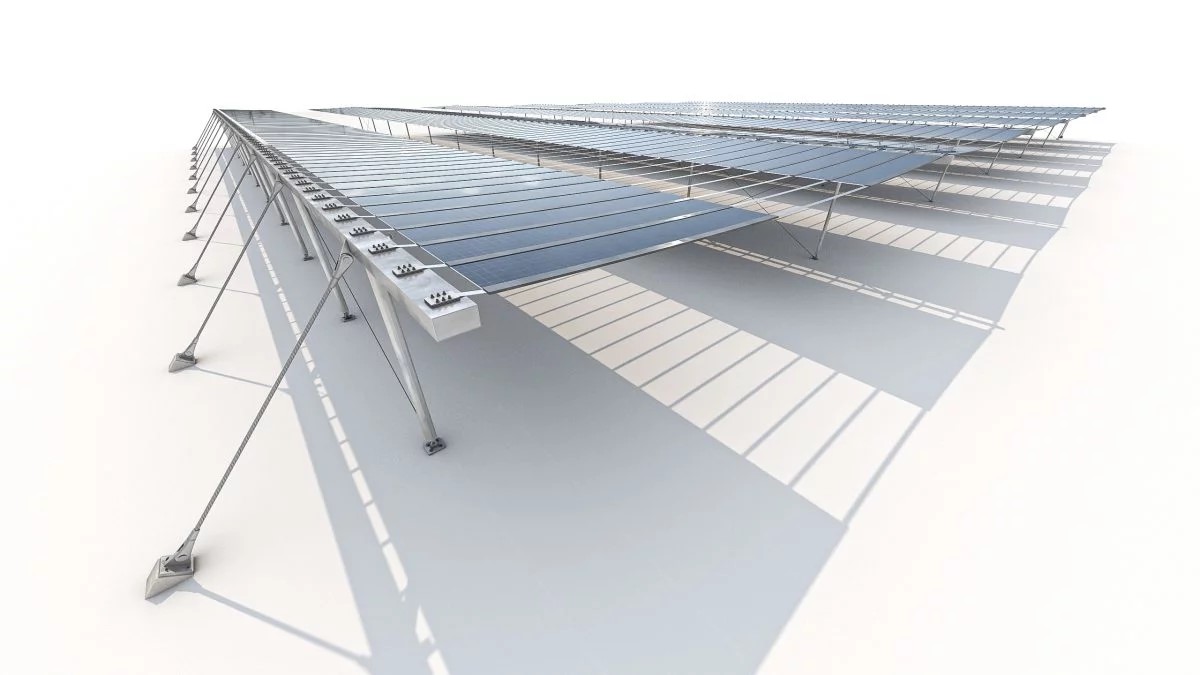

Tracker geometry

Rectangular / Circular
Hexagonal

Load cases

Elevation positions
Wind directions

Site dependent factors

Wind velocity
Array factor

Material properties

Steel grade S235/S275/S355

APPLICATION WORKFLOW


I. Select tracker

- Choose support structure
- Set safety concept
- Specify geometry parameters

II. Run Computation

- Define wind speed
- Select elevation positions and wind directions
- Start finite element analysis

III. Visualisation

- Principal stresses
- Structure deflections

IV. Send Results

- Bill of material (Cross section and length)
- Specifikation for the drives

NEWS AND PUBLICATIONS


AIP Publishing 2016

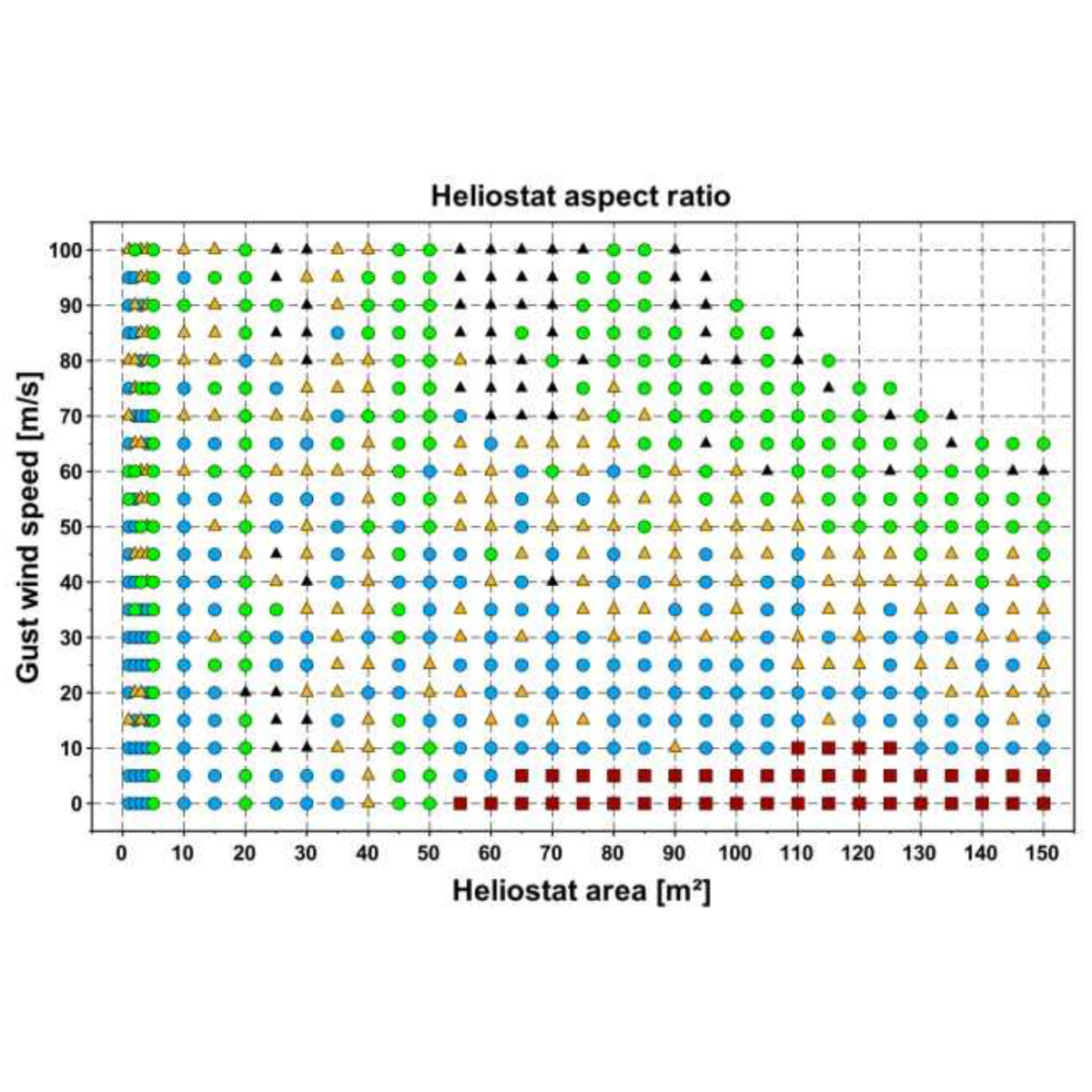

AIP Publishing - "Advanced Structural Optimization of a Heliostat with Cantilever Arms"

Chang is in the Air

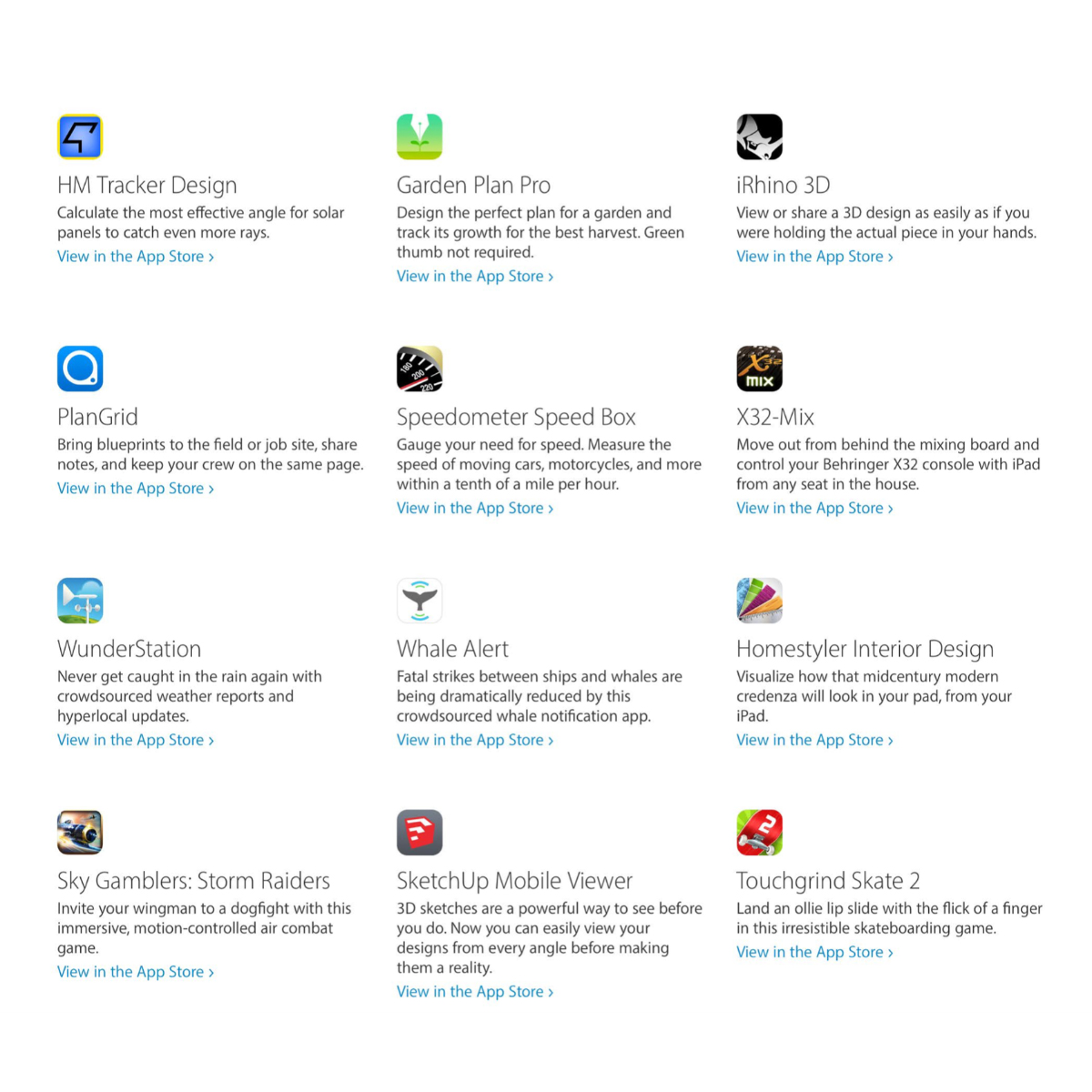

Promotion in Apple's iPad Air 2 advertising campaign - "Change is in The Air"

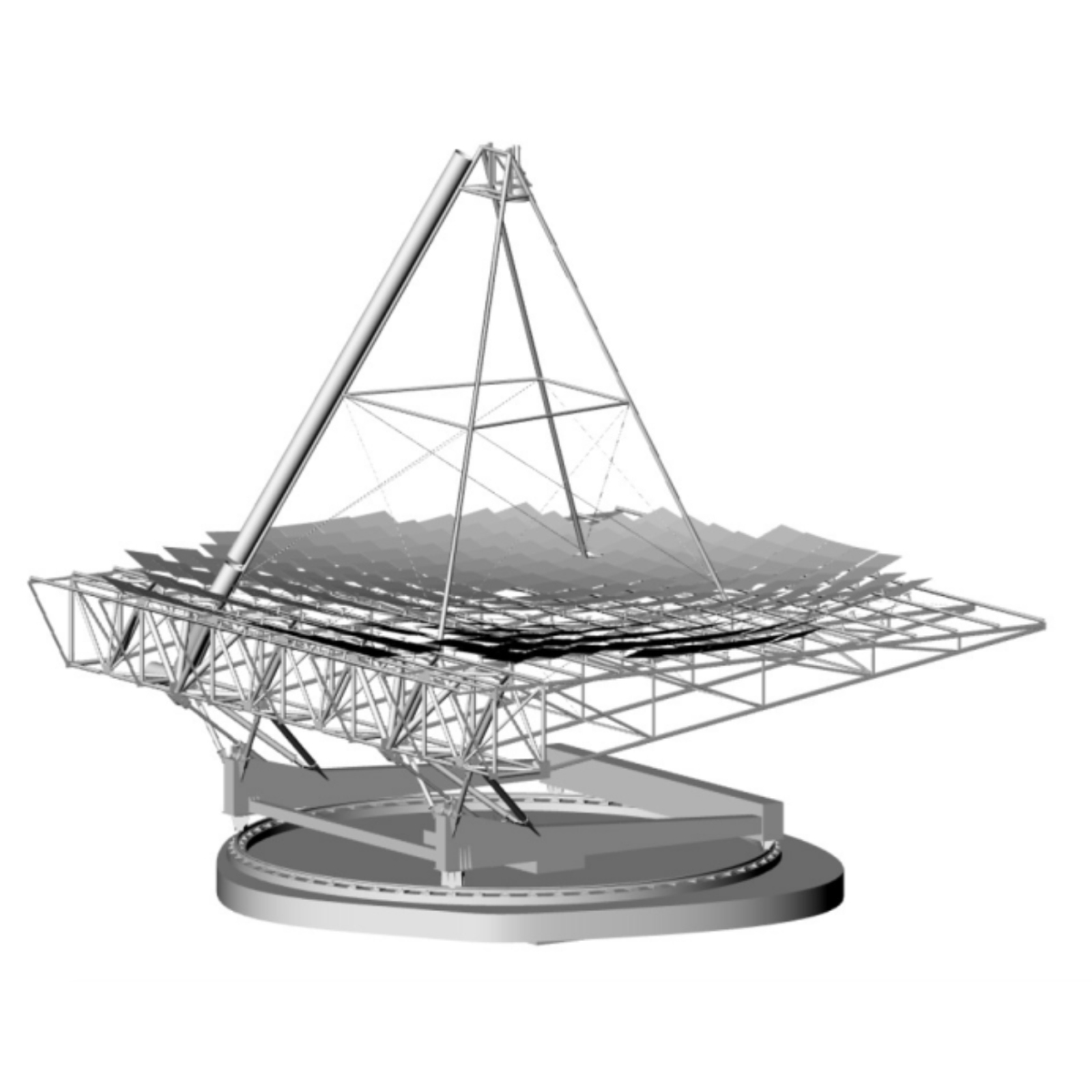

SolarPACES 2013

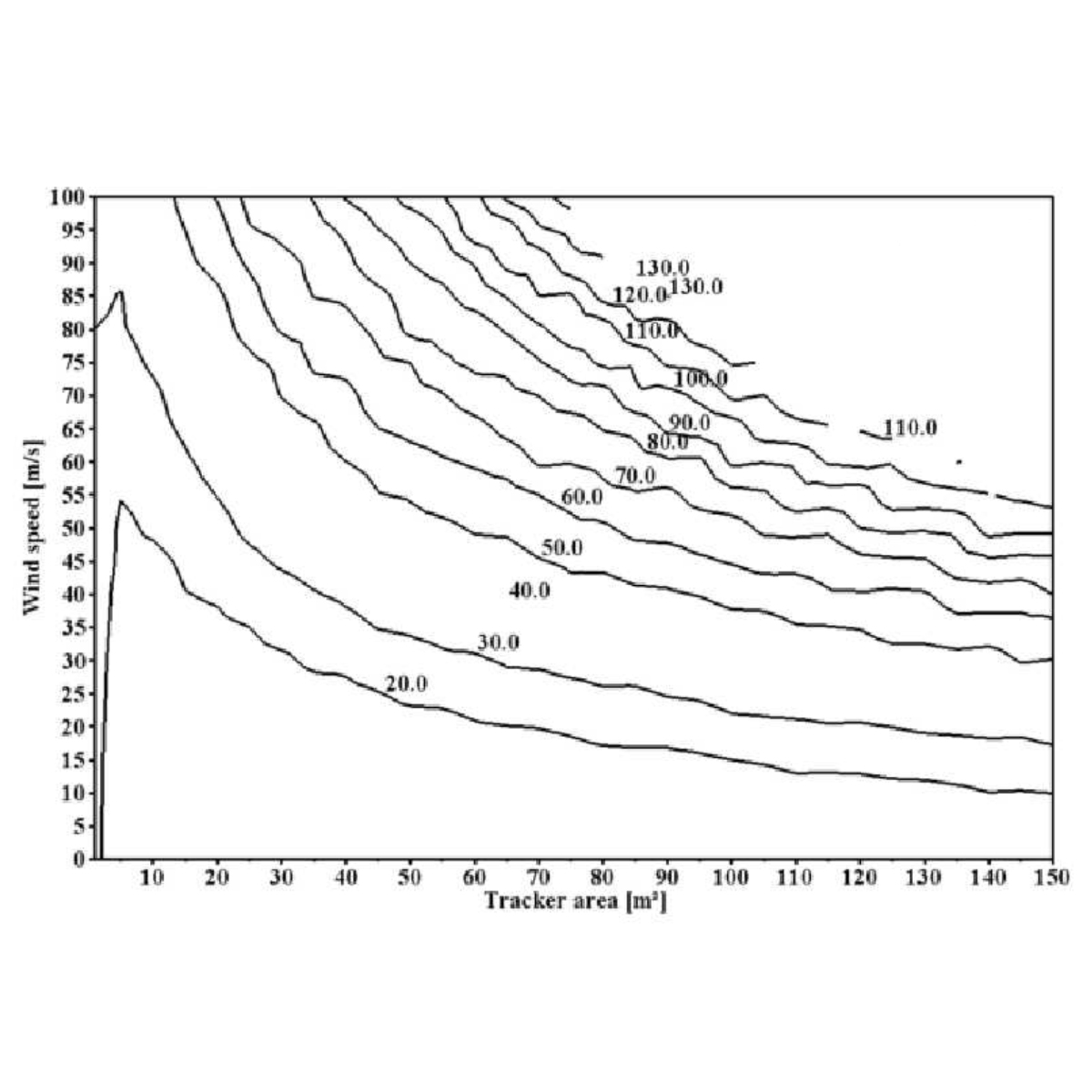

Energy Procedia Publication - "CSP and PV Solar Tracker Optimization Tool"

Ingenieria Renovable

Antonio Robredo posted short description about Heliomasters.

SIELA 2014

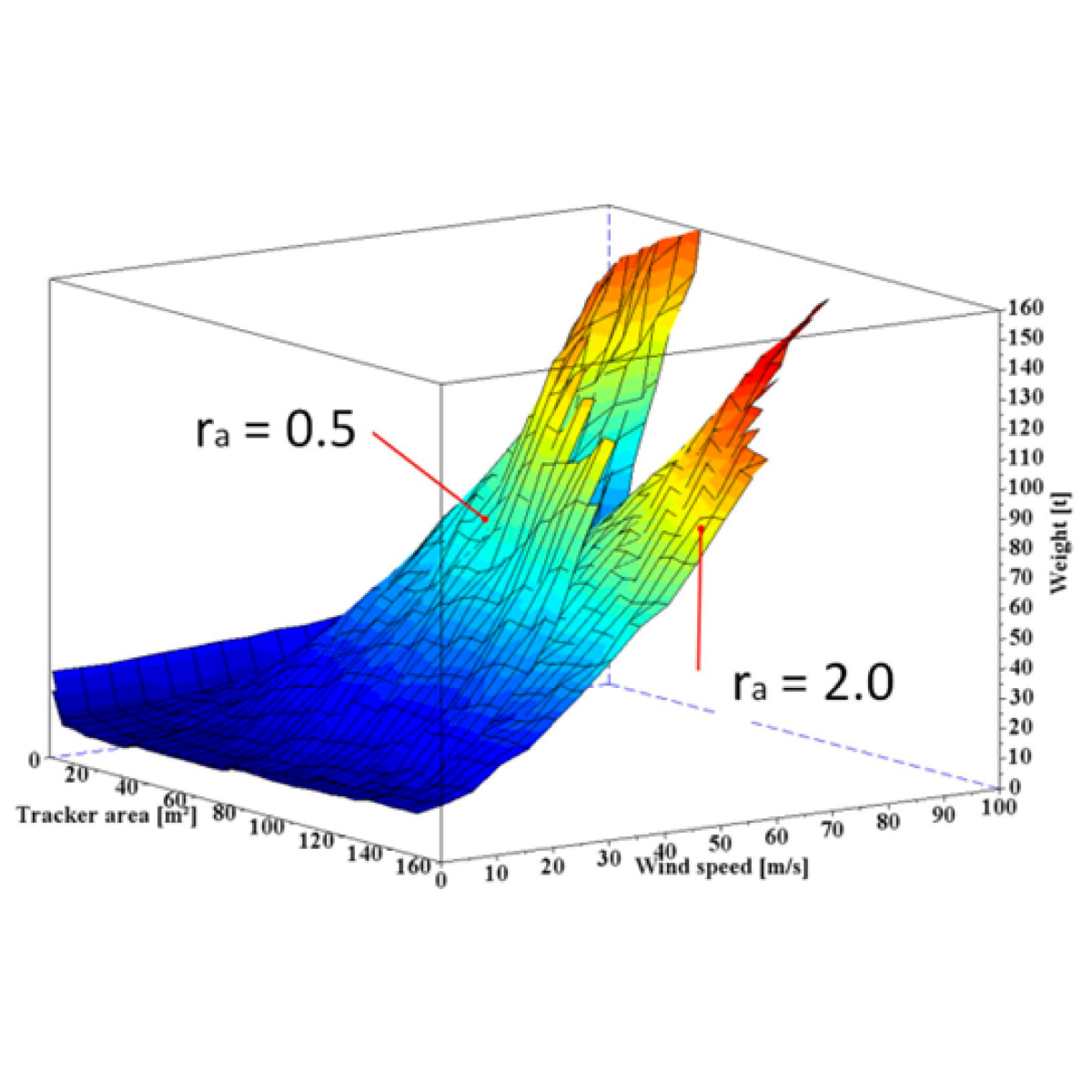

IEEE Conference Publication – "Design optimization of PVPP with solar trackers"

Watt-Tracker

Watt-Tracker used HM Tracker Design to calculate the wind loading and verify the structural design.
